Catalog Number
HMICVR1008
UPC
19156411932
List Price
$208.39
Description

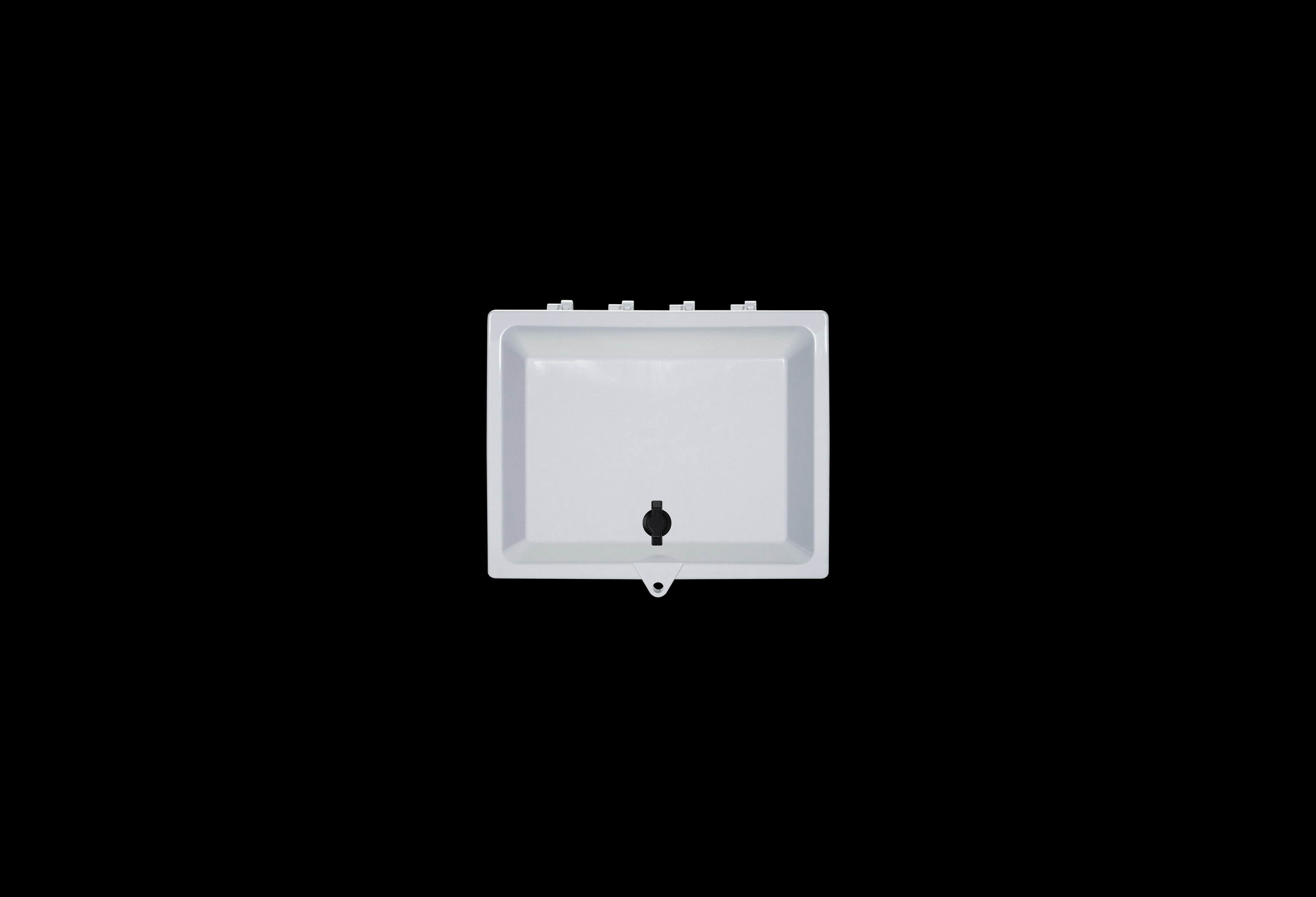

10W x 8H Inch SolarShield HMI Opaque Cover for HMI Device Type 4 and 4X, Non-Metallic
Application
Provide superior protection of Human Machine Interface (HMI) screens from the sun, wind-blown dust, and other environmental conditions
Features
Fits standard 10” x 8” and smaller HMI screens
Maintains NEMA 4/4X rating of enclosure when paired with NEMA 4/4X rated HMI Device

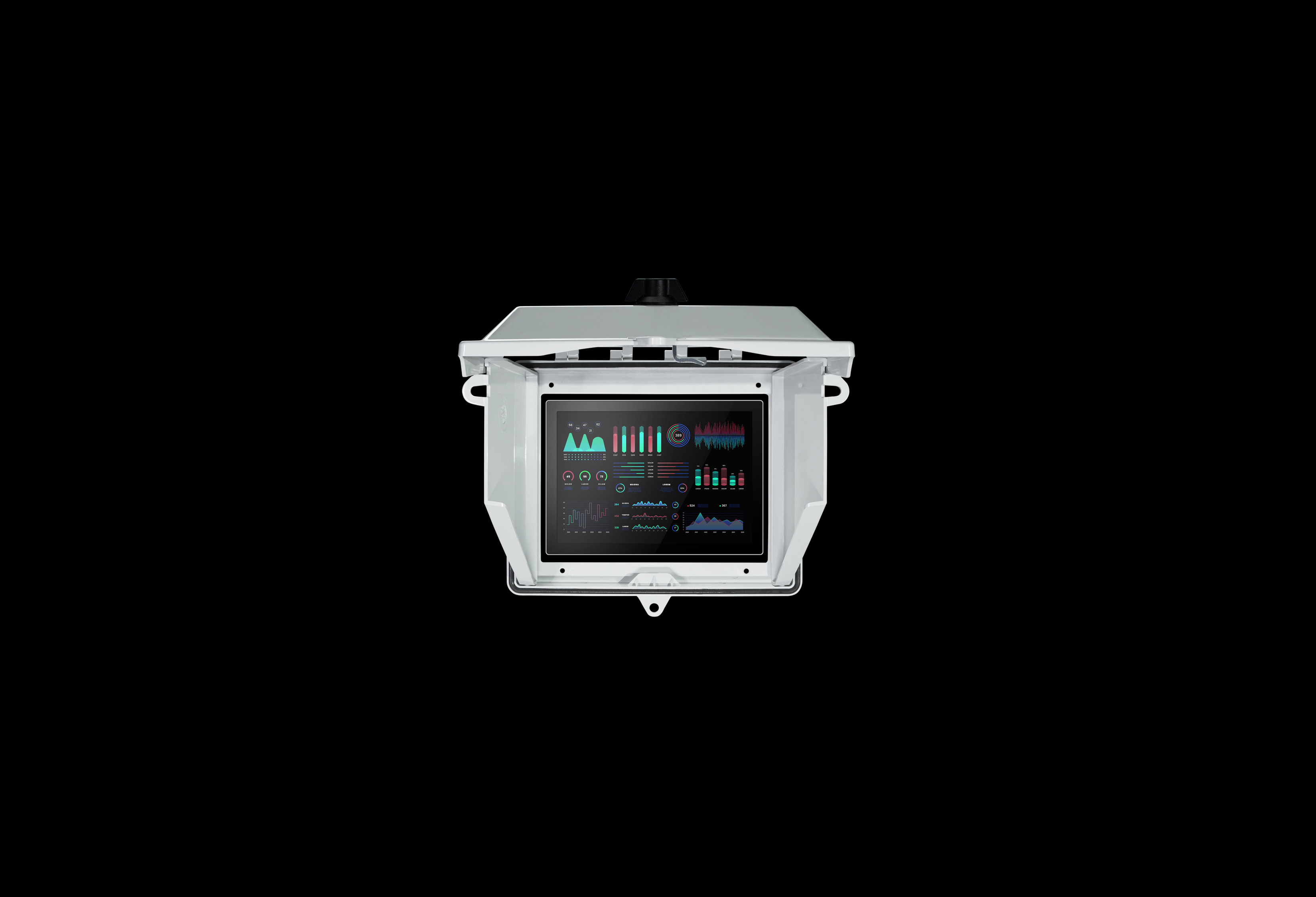

Patent pending with non-metallic, hinged inner doors to shield screen from the sun and allow for hands-free use
Universal covers can be used with either non-metallic or metallic enclosures
Lightweight, high-Impact rated, UV resistant polycarbonate material construction
Stainless steel hardware kit Included
Padlock-able for increased security
Simple and easy installation with the use of common tools
Available as standalone SKUs or assembled to our enclosures with added HMI cutouts through our value-add ModRight program.
Color: Pantone 428C
General Information
Color
Gray
Cover Type
Opaque
Mounting Type
Box Mount
Material
Polycarbonate
Cover Screw Size
#10-32 x 5/8
Cover Screw Recommended Torque
20-24 in-lbs
Cover Screw Material
304 SS
Installation Mounting Torque
20-24 in-lbs Max
Hinge Material
Integral Polycarbonate
Latch Material
Nylon
Gasket Material
Poured In Place (PIP) Polyurethane Seamless
Country of Origin
India
Dimensions
Height (in)
11.4
Width (in)
13.1
Depth (in)
2.5
Height (in)
334.0
Width (in)
290.0
Depth (in)
64.0
Inside Height (in)
9.9
Inside Width (in)
7.3
Inside Depth (in)
2.5
Standards
UL508A
cULus Registered Componet File #E64358
Type
4; 4X when Used with 4/4X HMI Device
Temperature Range °F
-40°F to +248°F
Temperature Range °C
-40°C to +120°C
Flamability Rating
UL94-5VA
Outdoor Exposure UL746c
(f1) Rated
Technical Information
Product Category
Accessories
Product Family
HMI Covers
