Catalog Number
HMICVR1008C
UPC
19156412070
List Price
$208.39
Description

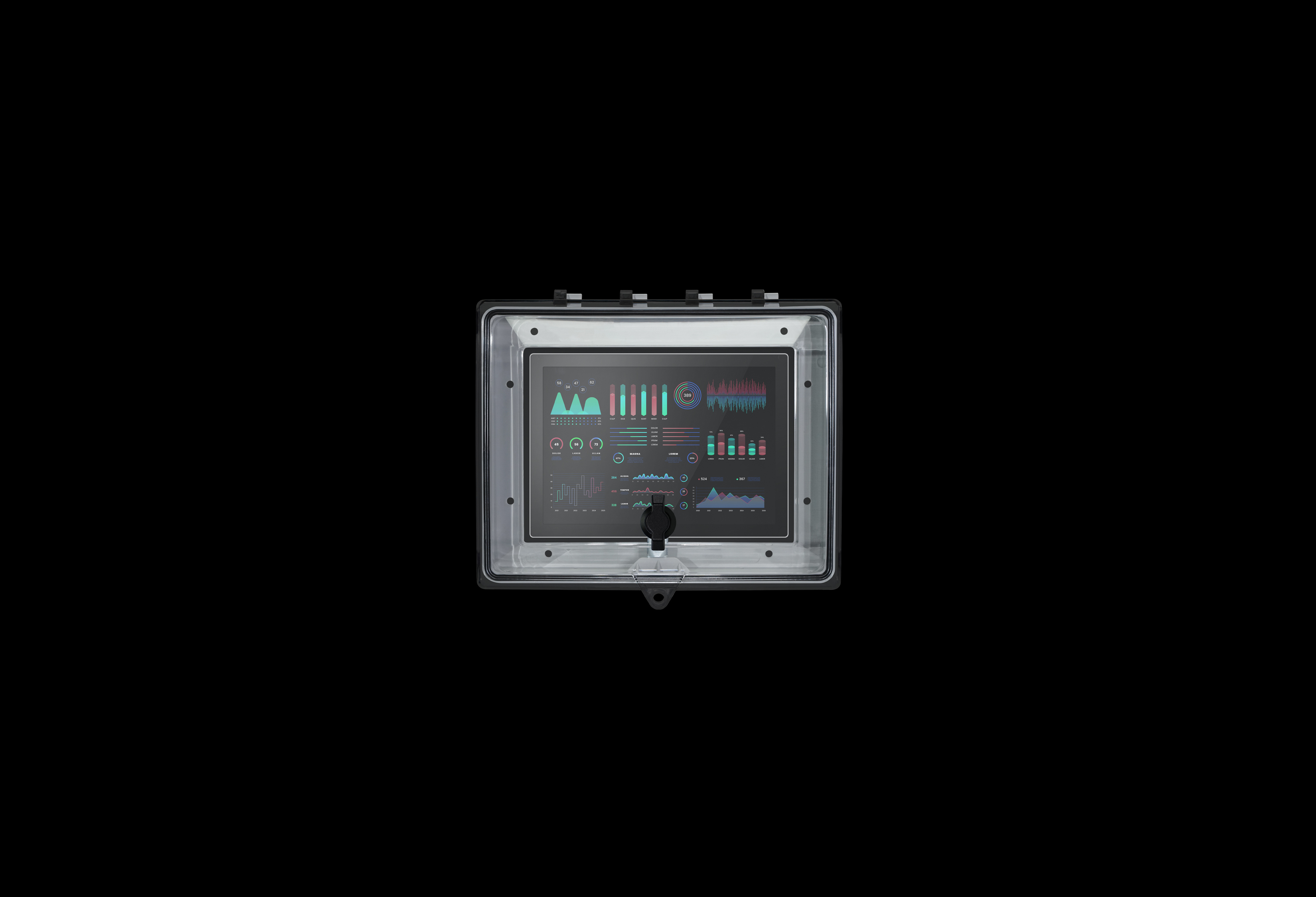

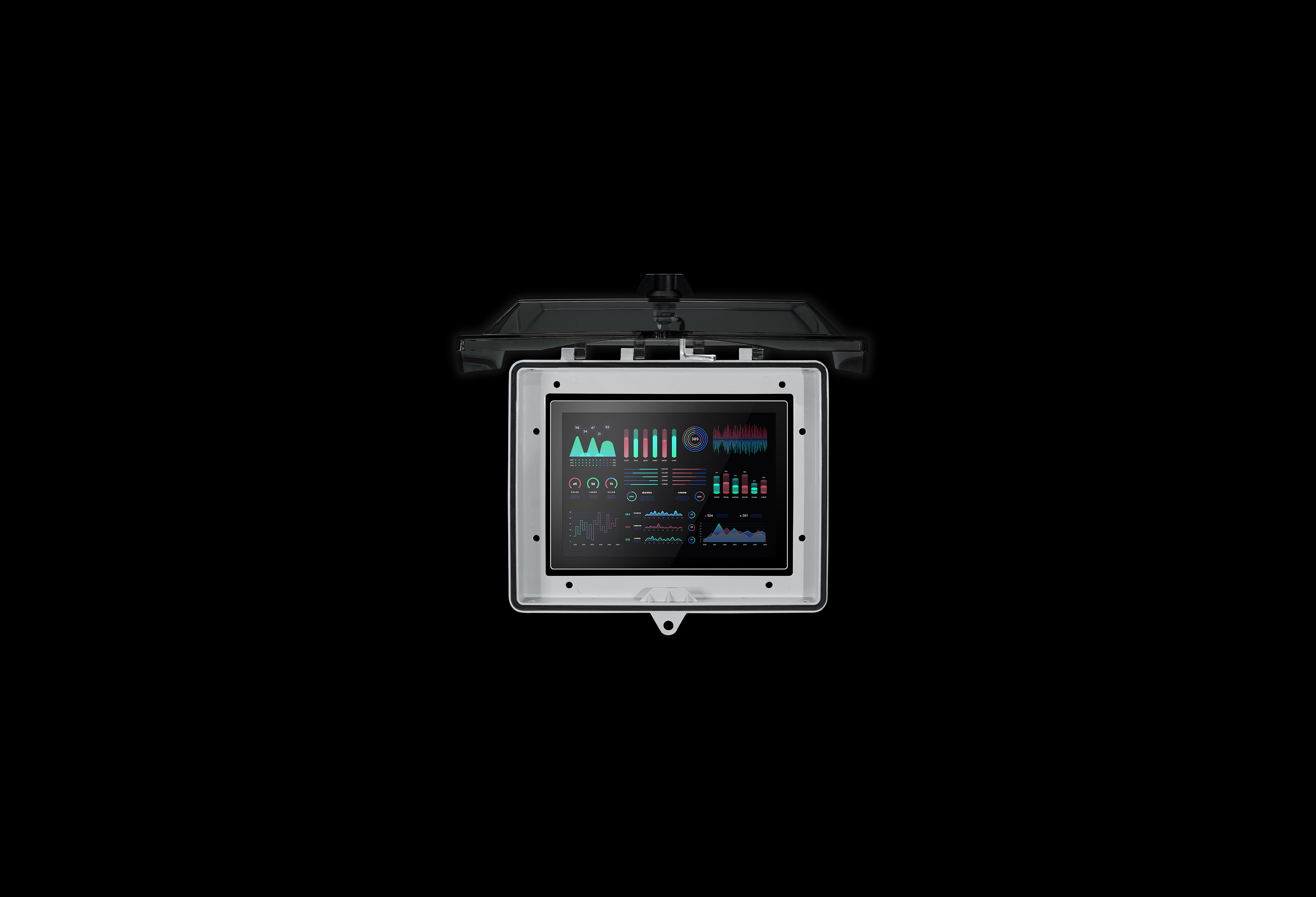

10W x 8H Inch SolarShield HMI Clear Cover for for HMI Devices offer the most innovative, durable non-metallic HMI Covers for use with all enclosure material types. The clear version has an easy to use, hinged design with clear cover which allows for visibility of the HMI screen while the cover is closed. SolarShield HMI Clear covers protect HMI screens and electrical equipment from corrosion and damage due to water, oils, dirt, and sand and greatly reduce equipment replacement cost. Impact resistant polycarbonate construction provides long dependable life in harsh conditions. The Clear Cover configuration allows for excellent visibility of the HMI screen while the cover is closed.
Application
Provide superior protection of Human Machine Interface (HMI) screens, wind-blown dust, and other environmental conditions
Features
Clear Cover for visibility of HMI Display and Indicator Lights
Fits most standard Size 10, 8, 7 and smaller HMI screens
Maintains NEMA 4/4X rating of enclosure when paired with NEMA 4/4X rated HMI Device
Patented with non-metallic, hinged inner doors to shield screen from the sun and allow for hands-free use
Universal covers can be used with either non-metallic or metallic enclosures
Lightweight, high-Impact rated, UV resistant polycarbonate material construction
Stainless steel hardware kit Included
Padlock-able for increased security
Simple and easy installation with the use of common tools
Available as standalone SKUs or assembled to our enclosures with added HMI cutouts through our value-add ModRight program.
Inner Doors not included
General Information
Color
Clear
Cover Type
Clear
Mounting Type
Box Mount
Material
Polycarbonate
Cover Screw Size
#10-32 x 5/8
Cover Screw Recommended Torque
20-24 in-lbs
Cover Screw Material
304 SS
Installation Mounting Torque
20-24 in-lbs Max
Hinge Material
Integral Polycarbonate
Latch Material
Nylon
Gasket Material
Poured In Place (PIP) Polyurethane Seamless
Country of Origin
India
Dimensions
Height (in)
13.1
Width (in)
11.4
Depth (in)
2.5
Height (in)
334.0
Width (in)
290.0
Depth (in)
64.0
Inside Height (in)
9.9
Inside Width (in)
7.3
Inside Depth (in)
2.5
Standards
UL508A
cULus Registered Componet File #E64358
Type
4; 4X when Used with 4/4X HMI Device
Temperature Range °F
-40°F to +248°F
Temperature Range °C
-40°C to +120°C
Flamability Rating
UL94-5VA
Outdoor Exposure UL746c
(f1) Rated
Technical Information
Product Category
Accessories
Product Family
HMI Covers
Patent Name
Interface Protection Device
Patent Number
US D983,760 S
Patent Url
