Catalog Number
AH12104HW
UPC
19156412072
List Price
$204.01
Description

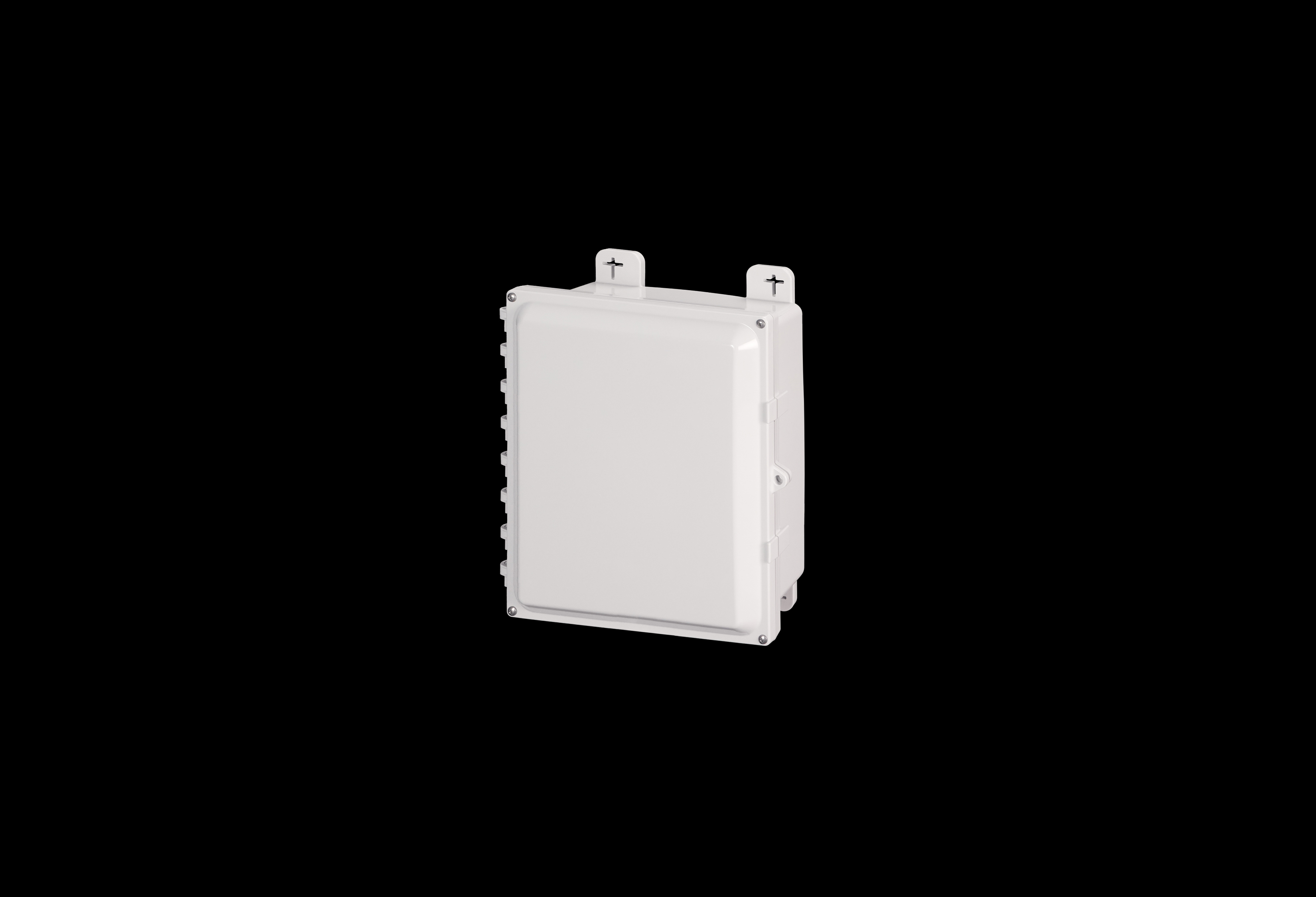

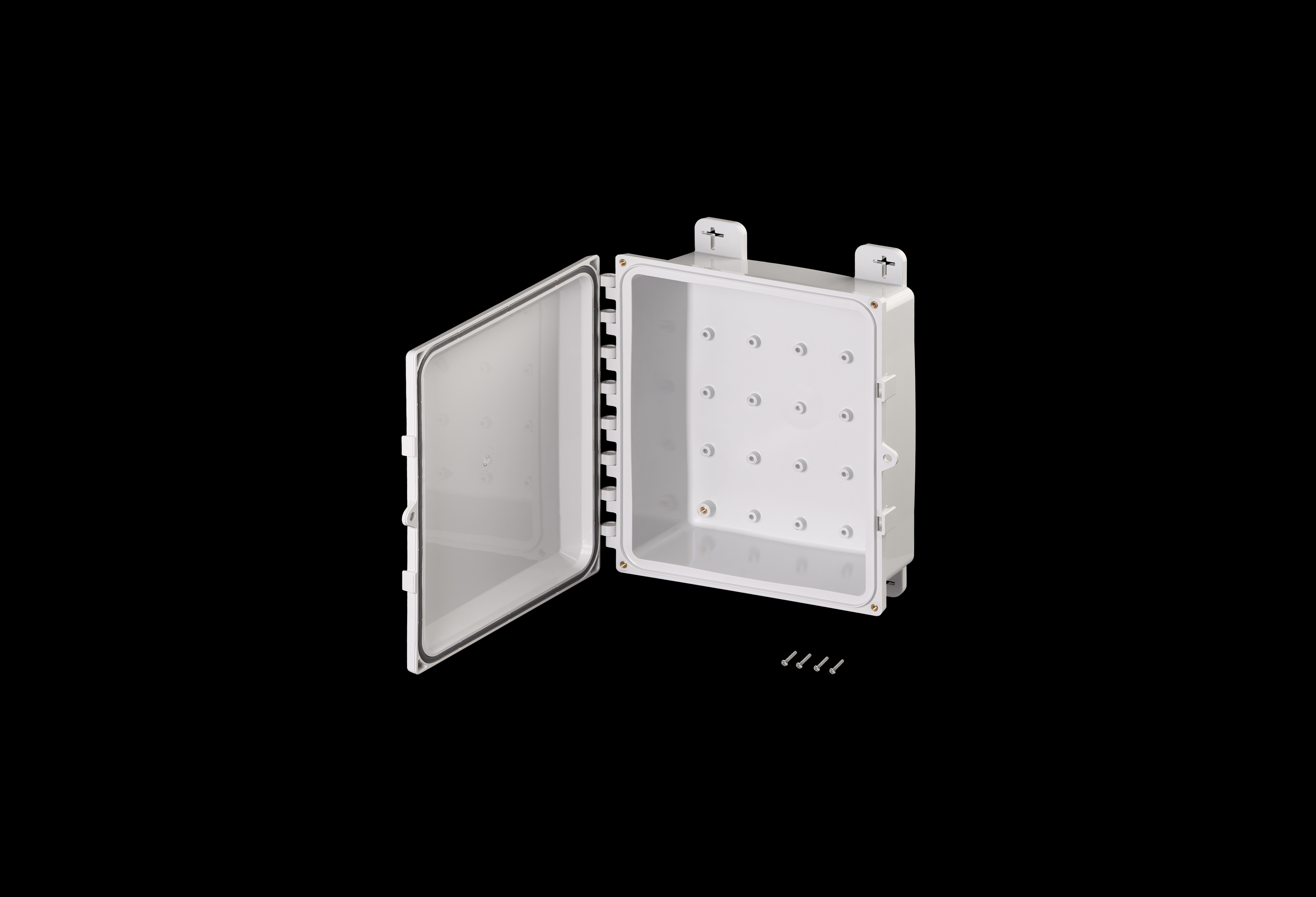

12H X 10W X 4D Inches Heartland™ Series is a high performance, shallow depth, polycarbonate enclosure applicable for heavy industrial conditions, but with a refined style suitable for commercial, industrial and OEM design applications. Heartland Series enclosures are rain-tight and watertight rated for use in both interior and exterior applications. This configuration features a screw down opaque cover without latches which is hinged and padlockable.
Application
For use in applications requiring shallow depth, low-profile enclosures
Features
Low-profile design provides the perfect depth for smaller components while maintaining a large footprint to accomodate interior mounted antennae
Non-metallic material construction with optional ABS Back Panel to allow unimpeded transmission of wireless signals
Hinges do not penetrate enclosure
Easy to remove cover
High performance inserts
Integrated Padlock Hasp
Smooth Side Wall construction for easy fitting mounting and alignment
Molded in bosses for attachment of DIN rail
Molded-in Mounting Feet / Flange Provided
Single SKU with multiple cover attachment options
Hinged Screw-Down, Without Latches
General Information
Color
Gray
Cover Type
Opaque
Mounting Type
Wall Mount
Material
Polycarbonate
Back Panel Screw Size
#10-32x3/8
Back Panel Recommended Torque
16-20 in-lbs
Back Panel Screw Material
Zinc Plated
Cover Screw Size
#10-32 x 5/8
Cover Screw Recommended Torque
20-24 in-lbs
Cover Screw Material
304 SS
Mounting Flange Screw Size
1/4-20 x 1/2
Mounting Flange Screw Recommended Torque
10-14 in-lbs
Installation Mounting Torque
25-30 in-lbs Max
Metal Inserts
Brass
Hinge Material
Integral Polycarbonate
Latch Material
Gasket Material
Poured In Place (PIP) Polyurethane Seamless
Country of Origin
USA
Dimensions
Height (in)
12.0
Width (in)
10.0
Depth (in)
4.0
Height (mm)
305.0
Width (mm)
254.0
Depth (mm)
102.0
Useable Depth (in)
4.6
Useable Depth (mm)
117.1
Standards
NEMA 250; UL 50; UL 50e; UL508A; CSA Std. C22.2
cULus Listed File #E319779
Type
1; 3R; 4; 4X; 6P; 12
IEC 60529
IP66; IP68
Temperature Range °F
-40°F to +248°F
Temperature Range °C
-40°C to +120°C
Flamability Rating
UL94-5VA
Outdoor Exposure UL746c
(f1) Rated
CE
Certified
Technical Information
Product Category
Enclosures
Product Family
Heartland SL Series
