Catalog Number
YW-COPC2PB22
UPC
19156411713
List Price
$113.89
CAD Drawings
Description

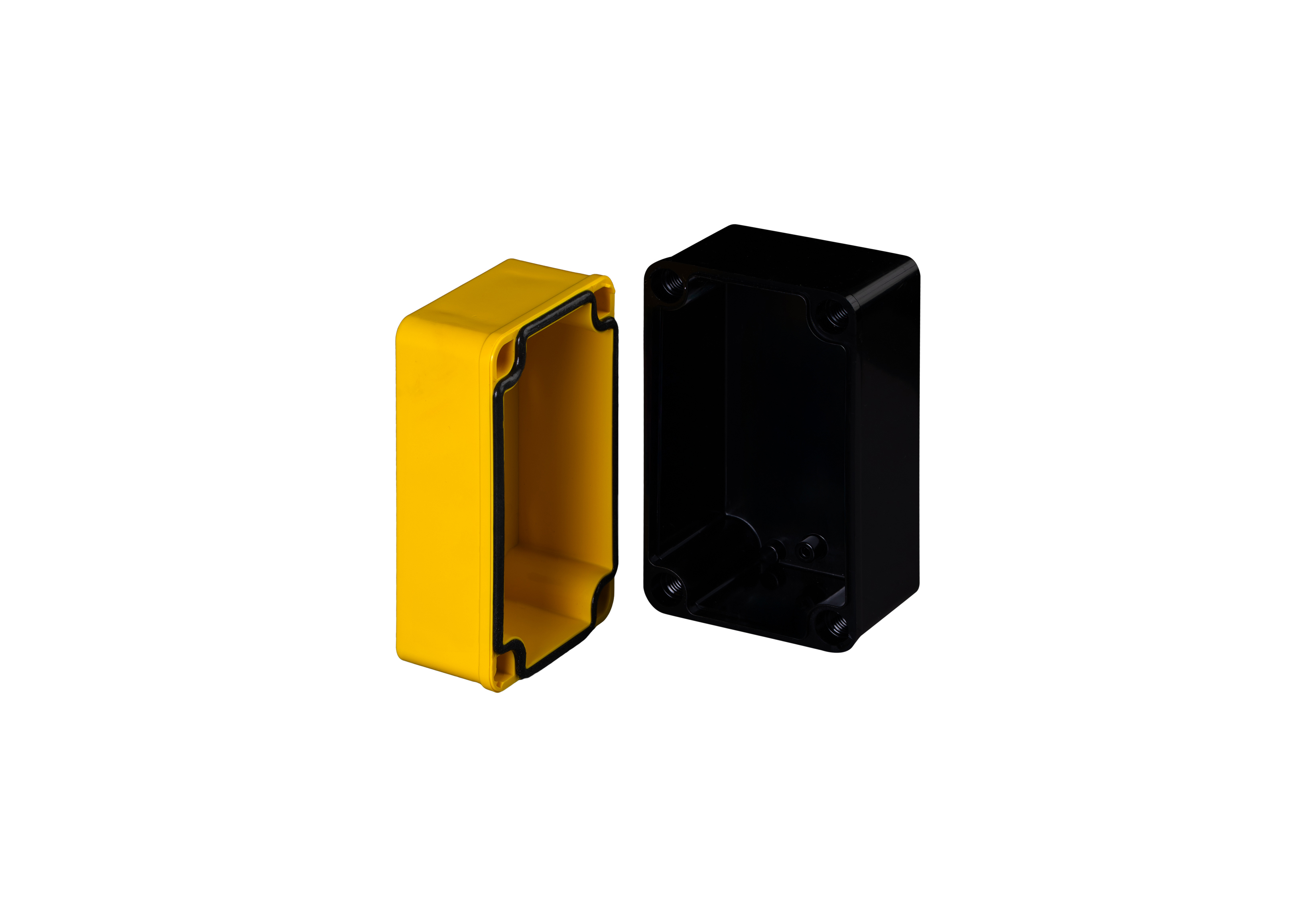

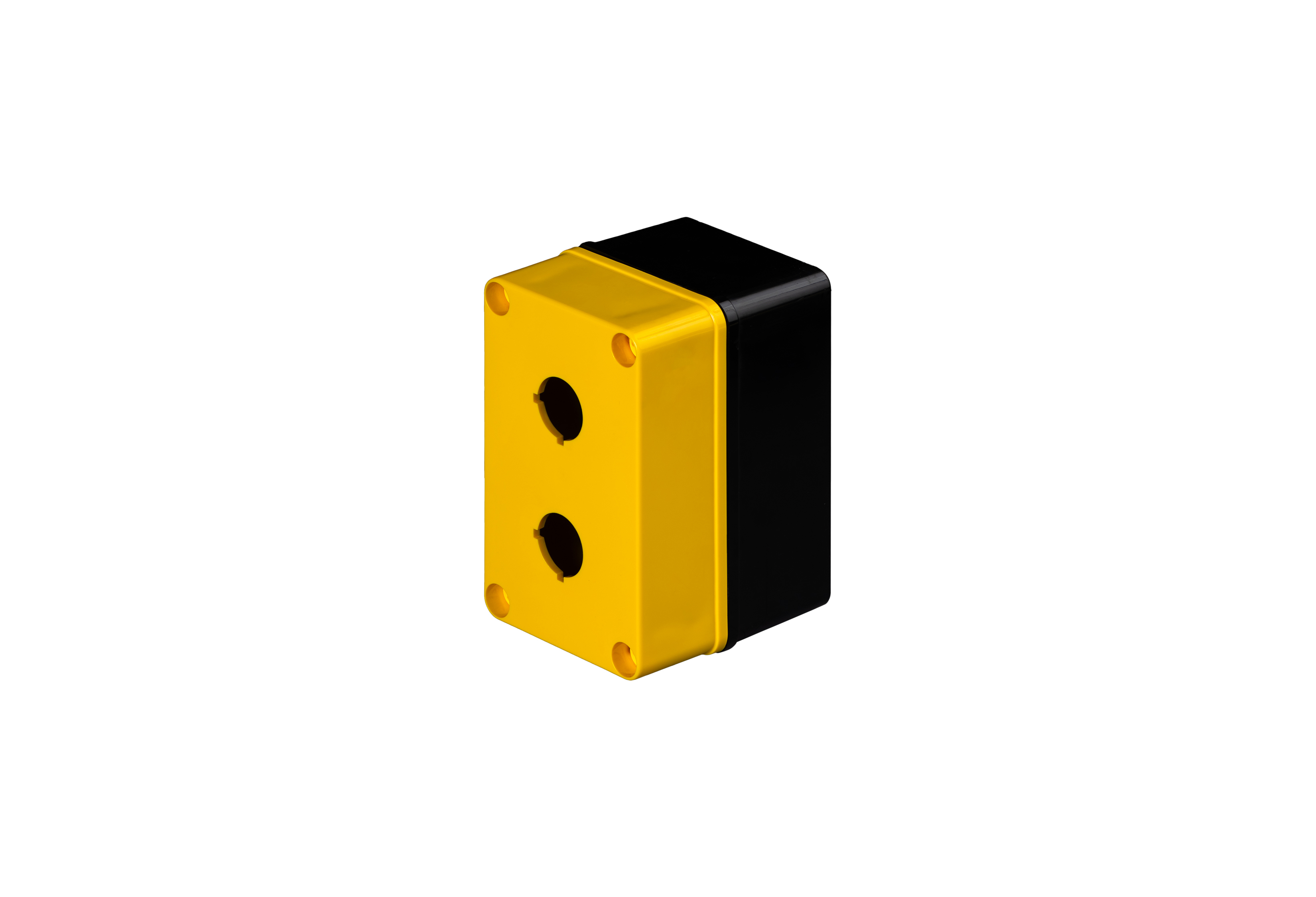

5H x 3W x 3D Inches Yellow Push Button Commander Series Polycarbonate Enclosures are slim-line designed enclosures featuring 4 cover screws with a lift off cover. This design has 2 holes at 22 mm.
Application
For use in many MRO and OEM applications
Slim design allows easy installation of pushbuttons and switches in machine control applications with tight or dense space requirements
Used in compact or portable control systems or for use as an Operator Interface Enclosures in both indoor and outdoor environments
These unique in-line enclosures house pushbuttons; switches and pilot lights in both 30mm and 22mm configurations
Used indoors or outdoors
Features
Memory retaining continuous polyurethane gasket
Captive polymer cover screws on polycarbonate option
Submersible; non corrosive; environmental design
High Impact Resistance
High visibility safety yellow cover
High visibility safety yellow cover
General Information
Color
Yellow
Cover Type
Push Button
Mounting Type
Wall Mount
Material
Polycarbonate
Cover Screw Size
Custom
Cover Screw Recommended Torque
16-20 in-lbs.
Cover Screw Material
Polycarbonate
Installation Mounting Torque
25-30 in-lbs. Max
Metal Inserts
Gasket Material
Poured In Place (PIP) Polyurethane Seamless
Country of Origin
USA
Dimensions
Height (in)
5
Width (in)
3
Depth (in)
3
Height (mm)
127
Width (mm)
76
Depth (mm)
76
Useable Depth (in)
3.26
Useable Depth (mm)
83
Standards
NEMA 10250; UL 50; UL 50e; UL508A
cULus Listed File #E64358
Type
1; 3R; 4; 4X; 6; 6P; 12
IEC 60529
IP66; IP68
IEC 60529
cULus Listed File #E362920
Temperature Range °F
-40°F to +248°F
Temperature Range °C
-40°C to +120°C
Flammability Rating
UL94-5VA
Outdoor Exposure UL746c
(f1) Rated
CE
Certified
Technical Information
Product Category
Enclosures
Product Family
Commander Series
