Catalog Number
COPC1PB
UPC
191564104010
List Price
$79.28
Description

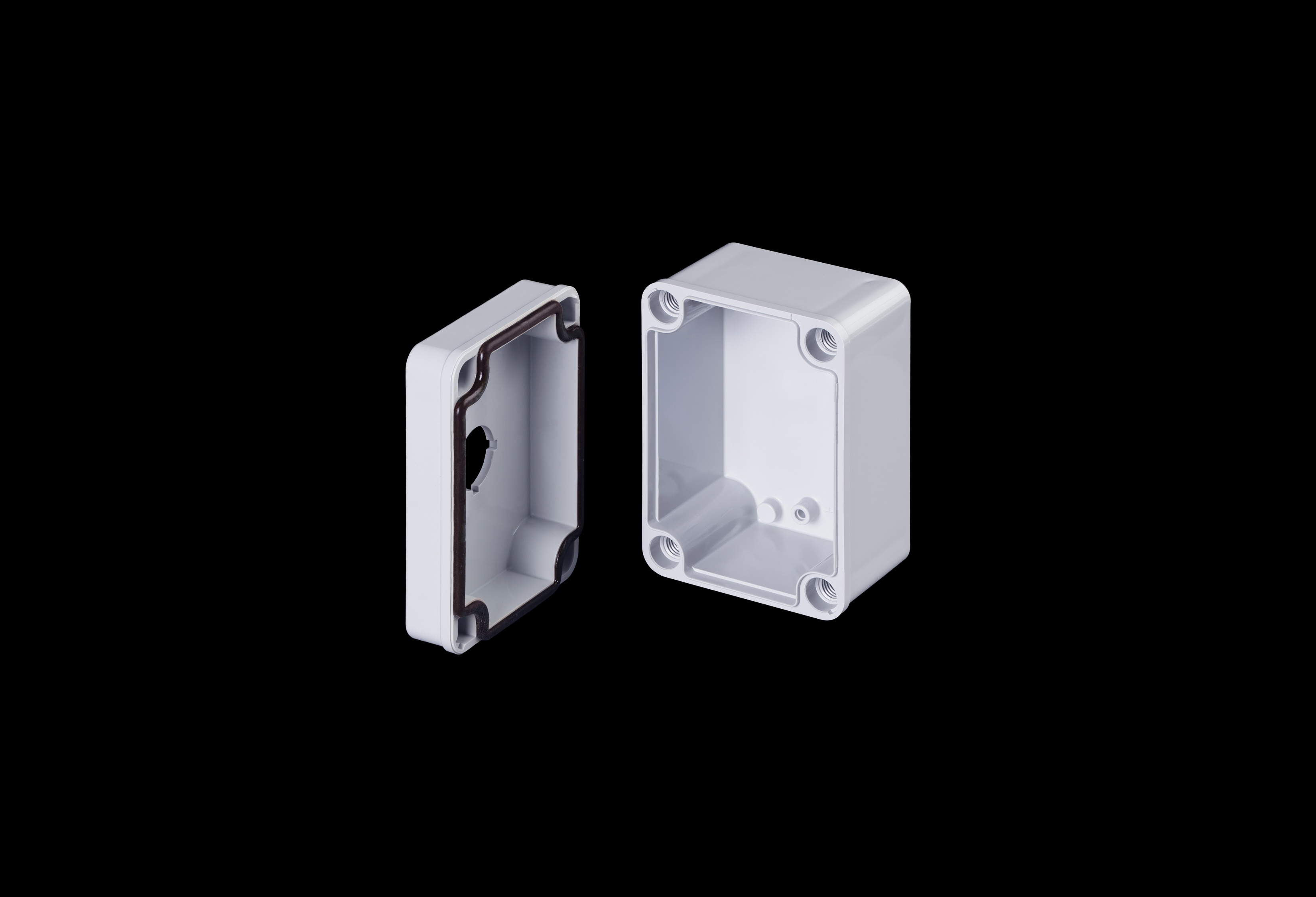

4H x 3W x 2D Inches Push Button Commander Series Polycarbonate Enclosures are slim-line designed enclosures featuring 4 cover screws with a lift off cover. This design has 1 hole at 30 mm.
Application
For use in many MRO and OEM applications
Features
Memory retaining continuous polyurethane gasket
Captive polymer cover screws on polycarbonate option
Submersible; non corrosive; environmental design
High Impact Resistance
General Information
Color
Gray
Cover Type
Push Button
Mounting Type
Wall Mount
Material
Polycarbonate
Cover Screw Size
Custom
Cover Screw Recommended Torque
16-20 in-lbs.
Cover Screw Material
Polycarbonate
Installation Mounting Torque
25-30 in-lbs. Max
Metal Inserts
Gasket Material
Poured In Place (PIP) Polyurethane Seamless
Country of Origin
USA
Dimensions
Height (in)
4.0
Width (in)
3.0
Depth (in)
2.0
Height (mm)
102.0
Width (mm)
76.0
Depth (mm)
51.0
Useable Depth (in)
2.5
Useable Depth (mm)
64.0
Standards
NEMA 250; UL 50; UL 50e; UL508A
cULus Listed File #E64358
Type
1; 3R; 4; 4X; 6; 6P; 12
IEC 60529
IP66; IP68
IEC 60529
cULus Listed File #E362920
Temperature Range °F
-40°F to +248°F
Temperature Range °C
-40°C to +120°C
Flammability Rating
UL94-5VA
Outdoor Exposure UL746c
(f1) Rated
CE
Certified
Technical Information
Product Category
Enclosures
Product Family
Commander Series
