Catalog Number
AH181610HW
UPC
19156412061
List Price
$336.77
Description

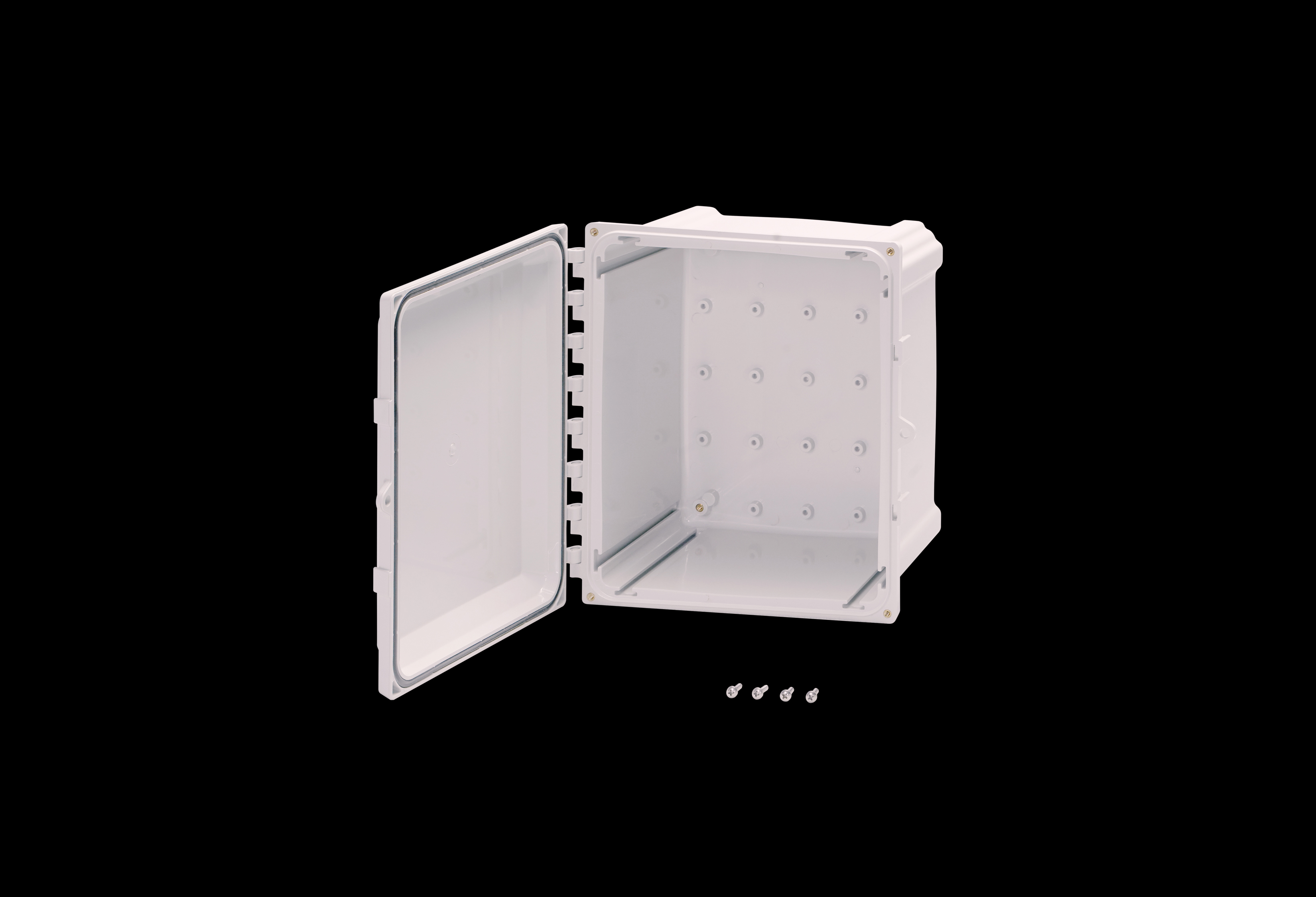

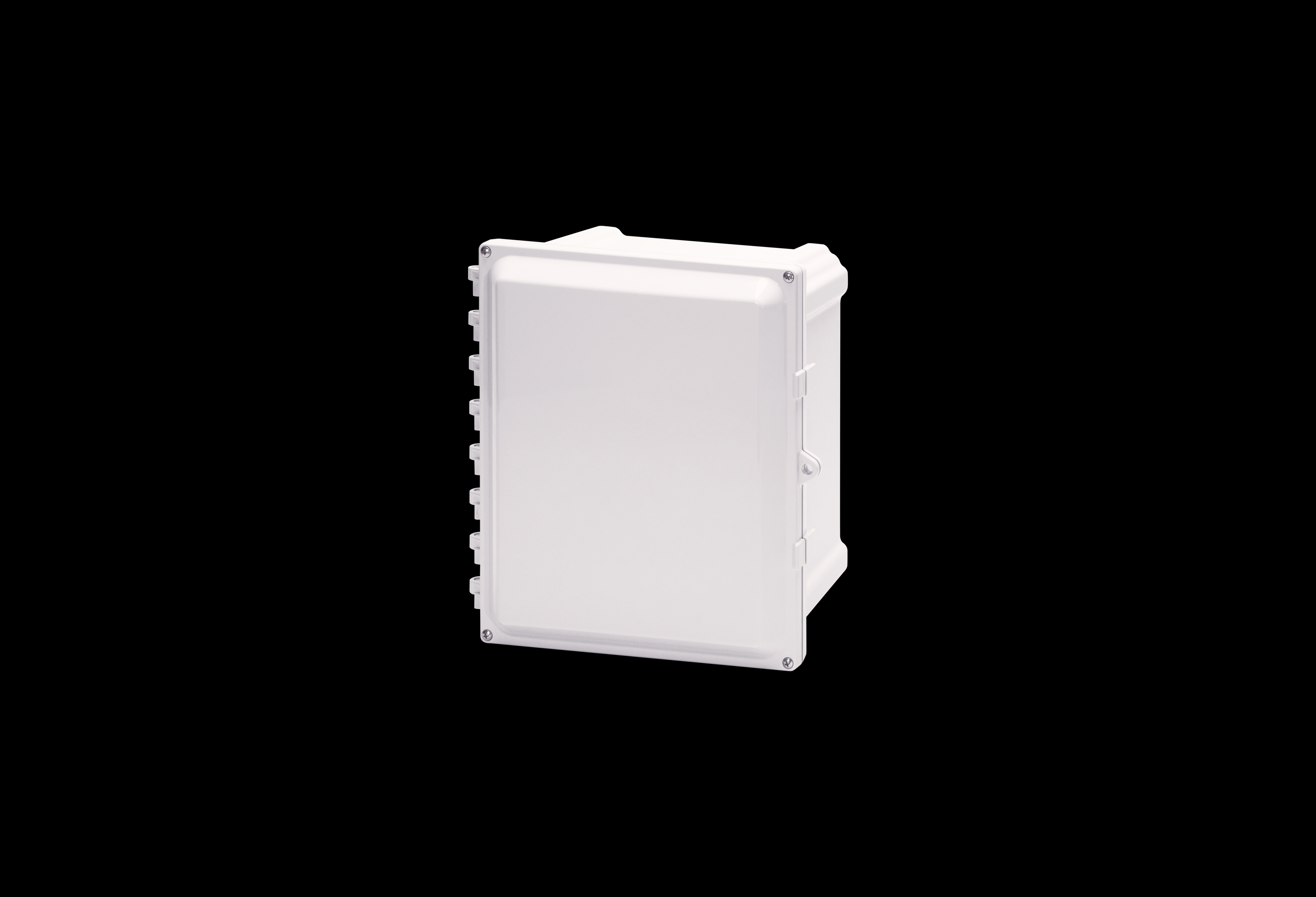

18H X 16W X 10D Inches Heartland™ Series is a high performance, polycarbonate enclosure applicable for heavy industrial conditions, but with a refined style suitable for commercial, industrial and OEM design applications. Heartland Series enclosures are rain-tight and watertight rated for use in both interior and exterior applications. This configuration features a screw down opaque cover without latches which is hinged and padlockable.
Application
Suitable for heavy industrial; commercial; and OEM applications
Features
Non-metallic material construction with optional ABS Back Panel to allow unimpeded transmission of wireless signals
Hinges do not penetrate enclosure
Easy to remove cover
High performance inserts
Integrated Padlock Hasp
Smooth Side Wall construction for easy fitting mounting and alignment
Molded in bosses for attachment of DIN rail
Molded-in Mounting Feet / Flange Provided
Single SKU with multiple cover attachment options
Hinged Screw-Down, Without Latches
General Information
Color
Gray
Cover Type
Opaque
Mounting Type
Wall Mount
Material
Polycarbonate
Back Panel Screw Size
#10-32x3/8
Back Panel Recommended Torque
16-20 in-lbs.
Back Panel Screw Material
Zinc Plated
Cover Screw Size
#10-32 x 5/8
Cover Screw Recommended Torque
20-24 in-lbs.
Cover Screw Material
304 SS
Mounting Foot Screw Size
1/4-20 x 1/2
Mounting Foot Screw Recommended Torque
10-14 in-lbs.
Installation Mounting Torque
25-30 in-lbs. Max
Metal Inserts
Brass
Hinge Material
Integral Polycarbonate
Latch Material
Gasket Material
Poured In Place (PIP) Polyurethane Seamless
Country of Origin
USA
Dimensions
Height (in)
18.0
Width (in)
16.0
Depth (in)
10.0
Height (mm)
457.0
Width (mm)
406.0
Depth (mm)
254.0
Useable Depth (in)
11.0
Useable Depth (mm)
268.0
Standards
NEMA 250; UL 50; UL 50e; UL508A; CSA Std. C22.2
cULus Listed File #E319779
Type
1; 3R; 4; 4X; 6P; 12
IEC 60529
IP66; IPX8
Temperature Range °F
-40°F to +248°F
Temperature Range °C
-40°C to +120°C
Flammability Rating
UL94-5VA
Outdoor Exposure UL746c
(f1) Rated
CE
Certified
Technical Information
Product Category
Enclosures
Product Family
Heartland Series
