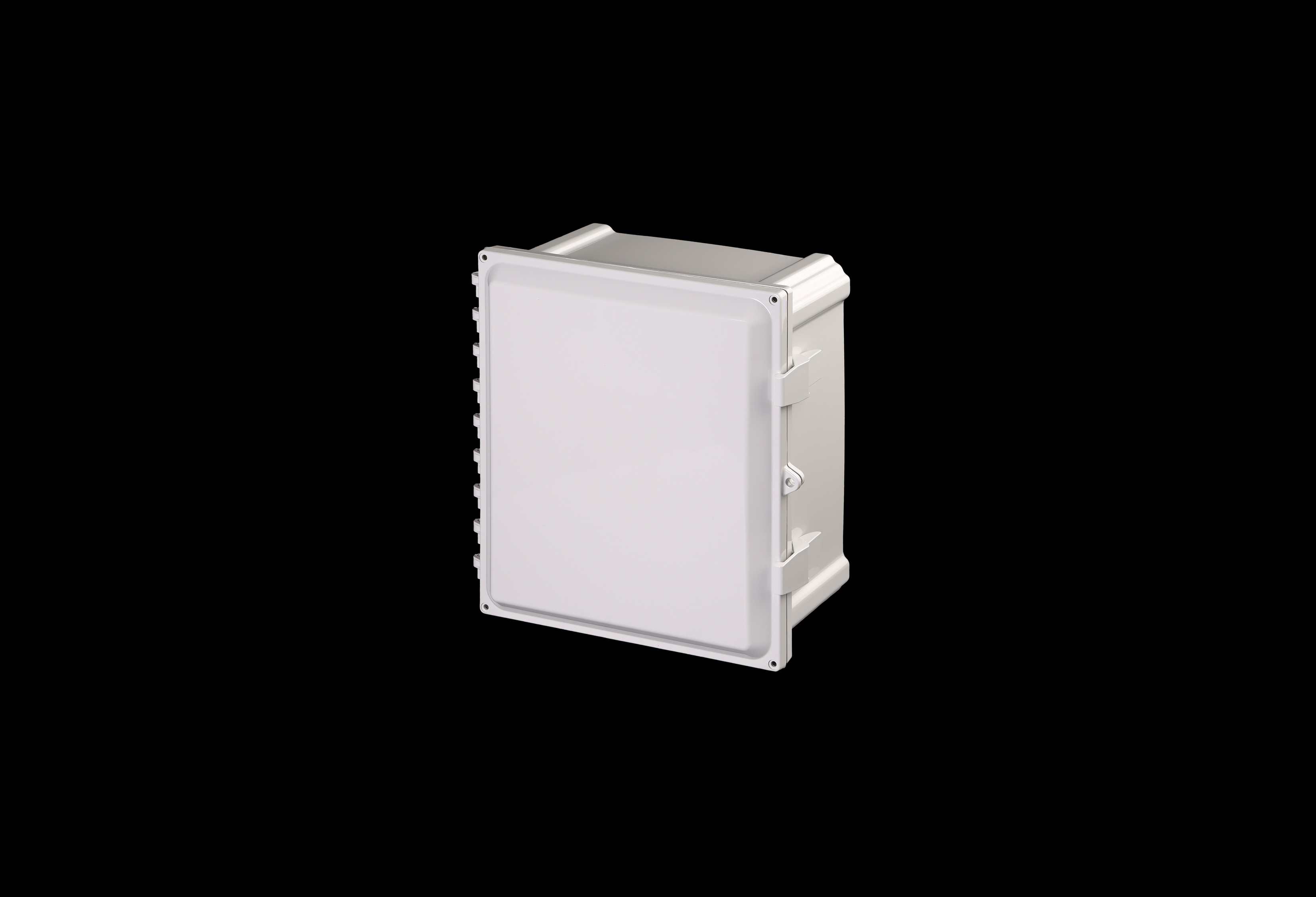

Polycarbonate Enclosure 10 x 8 x 4 Inches Heartland with Opaque Cover
cULus Listed logo IEC Standard
Print PDF

Catalog Number
AH1084
UPC
191564100135
List Price
$156.71
Opaque polycarbonate enclosure by AttaBox®

CAD Drawings

Description

10H x 8W x 4D Inches Heartland (AH) Series is a high performance, polycarbonate enclousre applicable for heavy industrial conditions, but with a refined style suitable for commercial, industrial and OEM design applications. Heartland Series enclosures are rain-tight and watertight rated for use in both interior and exterior applications. This configuration features an opaque cover which is hinged, latched and padlockable.

Application
Suitable for heavy industrial; commercial; and OEM applications
Features
Latches and hinges do not penetrate enclosure
Easy to remove lid
High performance inserts
integrated padlock hasp
Flush-fit side mount swing panel and DIN rail system
Molded in bosses
Multi-directional mounting feet
Single SKU with multiple cover attachment options

General Information

Color
Gray
Cover Type
Opaque
Latch Material
Polycarbonate with UV Inhibitors
Mounting Type
Wall Mount
Material
Polycarbonate
Back Panel Screw Size
#10-32x3/8
Back Panel Recommended Torque
16-20 in-lbs.
Back Panel Screw Material
Zinc Plated
Cover Screw Size
#10-32 x 5/8
Cover Screw Recommended Torque
20-24 in-lbs.
Cover Screw Material
304 SS
Mounting Foot Screw Size
1/4-20 x 1/2
Mounting Foot Screw Recommended Torque
10-14 in-lbs.
Installation Mounting Torque
25-30 in-lbs. Max
Metal Inserts
Brass
Hinge Material
Integral Polycarbonate
Latch Material
Polycarbonate
Gasket Material
Poured In Place (PIP) Polyurethane Seamless
Country of Origin
USA
Dimensions
Height (in)
10.0
Width (in)
8.0
Depth (in)
4.0
Height (mm)
254.0
Width (mm)
203.0
Depth (mm)
102.0
Useable Depth (in)
5.1
Useable Depth (mm)
128.0
Standards
NEMA 250; UL 50; UL 50e; UL508A
cULus Listed File #E319779
Type
1; 3R; 4; 4X; 6; 6P; 12
IEC 60529
IP66; IP68
IEC 60529
cULus Listed File #E362920
Temperature Range °F
-40°F to +248°F
Temperature Range °C
-40°C to +120°C
Flammability Rating
UL94-5VA
Outdoor Exposure UL746c
(f1) Rated
CE
Certified

Technical Information

Product Category
Enclosures
Product Family
Heartland Series
