Catalog Number
REHPSERIES1.5
UPC
191564108940.0
List Price
$12.74
CAD Drawings
Description

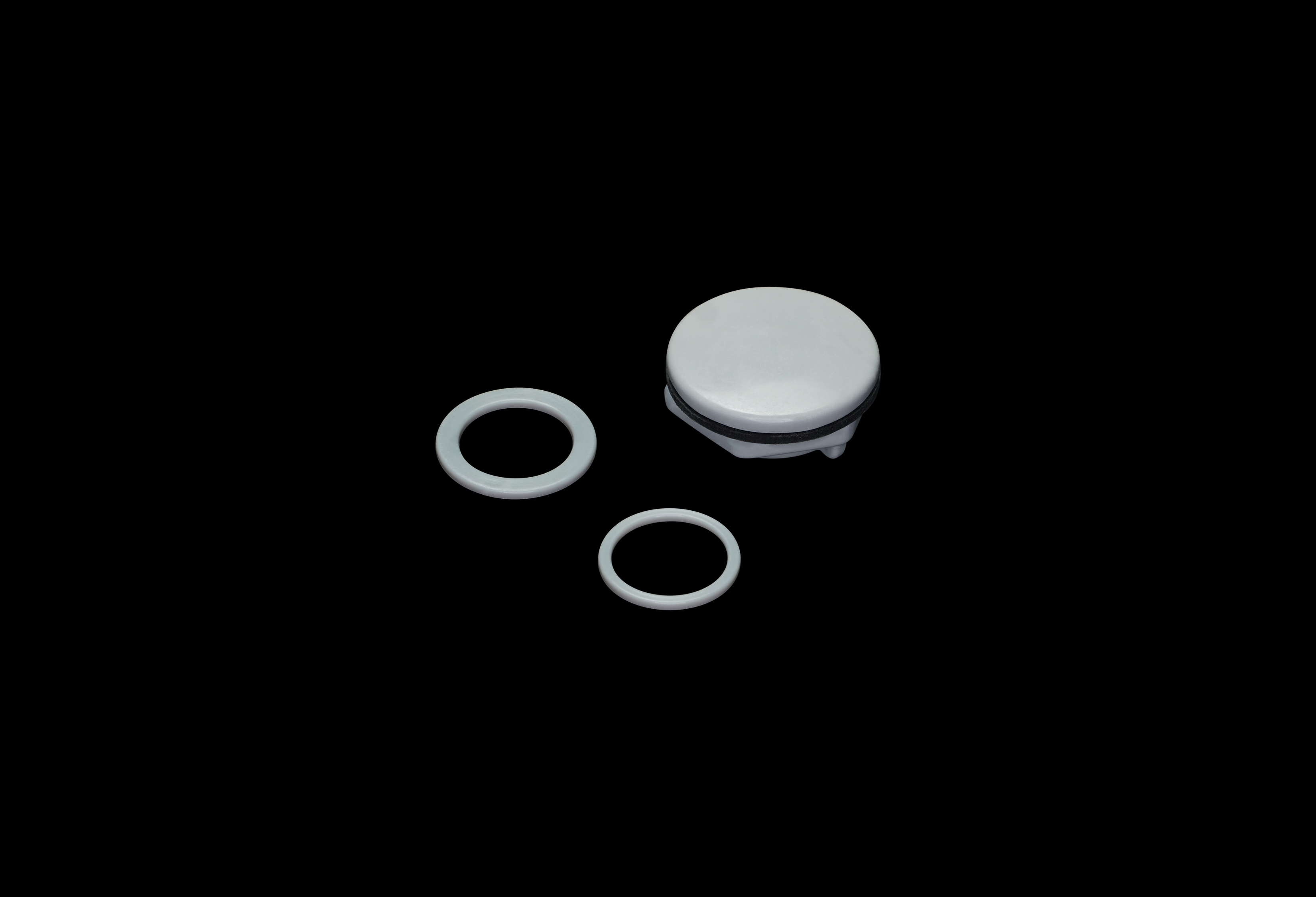

Pluggit Hole Plug for 1/2 Inch Conduit
Application
Hole plugs are used with enclosures which house electrical and electronic controls, instruments and components
Features
PluggIt! Superior corrosion resistance compared to rust-prone carbon steel and other metallic alternatives helps ensure increased enclosure life expectancy.
Cost effective when compared to either carbon or stainless steel alternatives.
Considerably better long-term resistance to UV degradation versus UV-susceptible soft rubber plugs that turn brittle from extreme temperature variations and repeated UV exposure.
Prohibits galvanic corrosion associated with dissimilar metals sometimes used in electrical enclosures.
Maintains all chemical resistance features of current Robroy Enclosures products.
A submersion/hosedown rated component for use in electrical enclosures UL recognized to type 4X and 6P.
General Information
Gasket Material
EPDM Rubber
Country of Origin
India
Standards
NEMA 250; UL 50; UL 50e; UL508A
UL Recognized File #E64358
CSA Std. C22.2
File LR069014
Type
1; 3R; 4; 4X; 6; 6P; 12
IEC 60529
IP66; IP68
Temperature Range °F
-26°F to +257°F
Temperature Range °C
-32°C to +125°C
Flammability Rating
UL94-V0
Outdoor Exposure UL746c
(f1) Rated
Technical Information
Product Category
Accessories
Product Family
Hole Plugs
Patent Name
Hole Plug Device
Patent Number
US9578765B2
Patent Url
